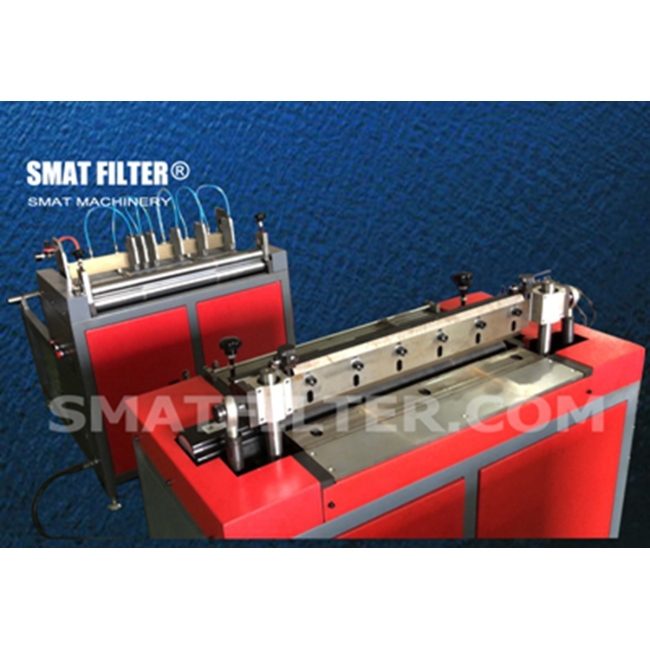

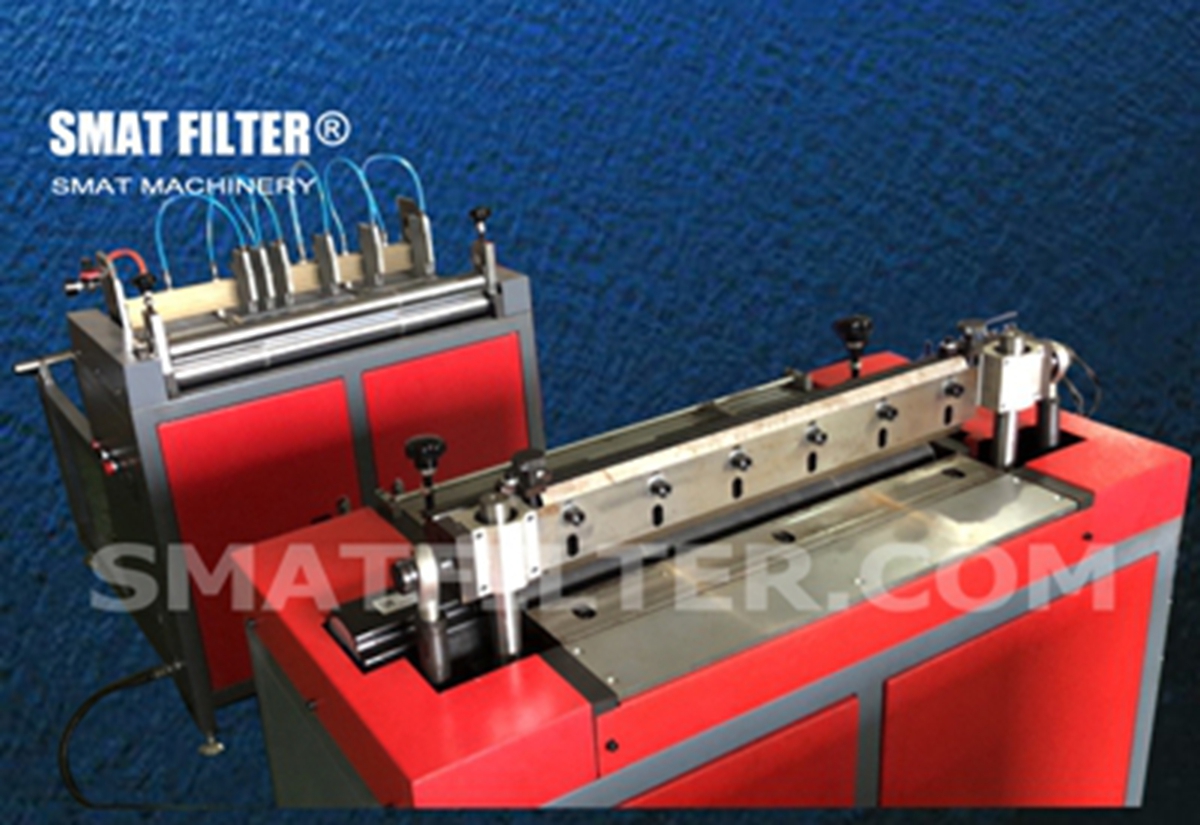

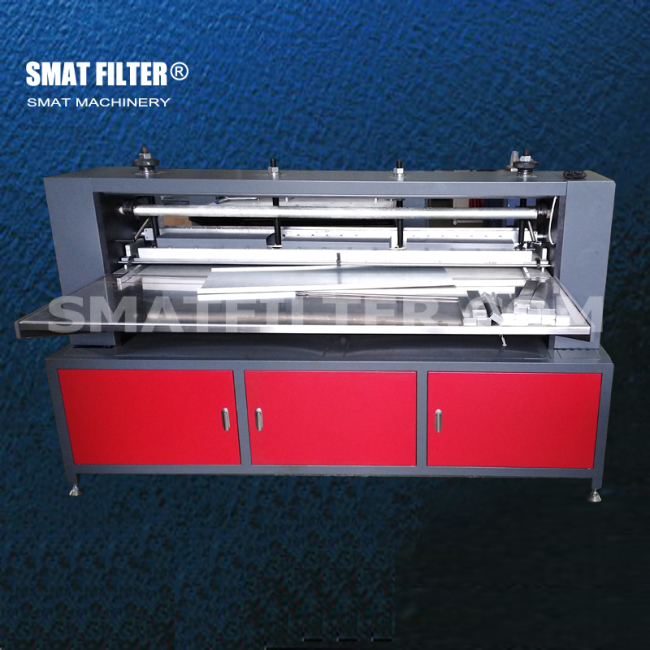

Knife Pleating machine

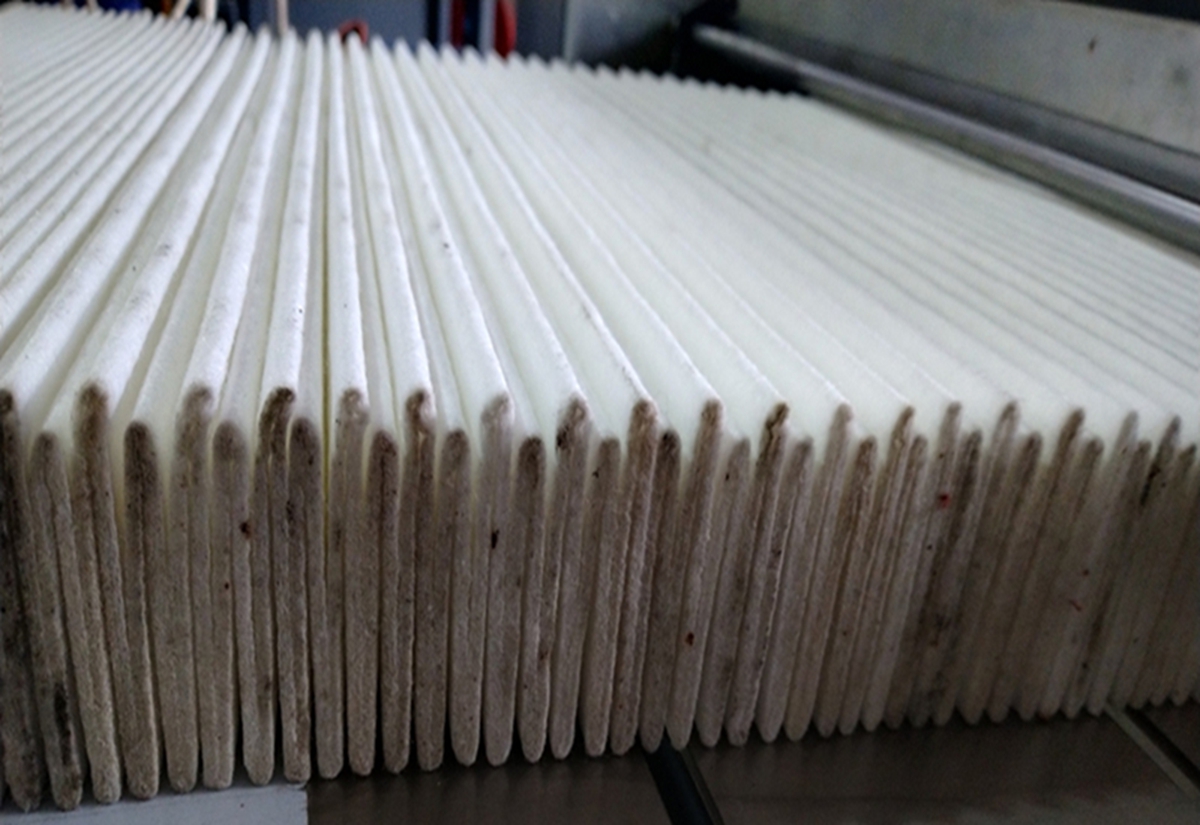

These series of knife type pleating machine, is the most popular one due to its attracting price, stable performation, wide range of raw material (mesh, fabric, paper etc.)
FOB CHINA
pleating machine: SMB-1-600 (similar with other size of 1050mm, 1500mm machine)
(1) Maximum product width: 620mm
(2) Adjustable pleating height range: 8-55mm
(3) pleating speed: 0-125 pleat / min, stepless adjustable
(4) Power supply voltage: 380V-50Hz
(5) Motor power: 1.1kw
(6) Preheating power: 4kw
(7) Temperature control range: normal temperature - 200 ℃
(8) Working pressure: 0.6MPa
(9) Machine weight: 500kg
(10) Overall dimension: 1270 × 1720 × 1240mm long × wide × High)
optional machine of cutting machine; pre-pressing machine etc.
 |  |
